Tilt - Tone Adjustment
Wide tone adjustment with one control
Wide tone adjustment with one control
Wide tone adjustment with one control
Tilt is the first in our series of core modules, which will take cues from the main product line and strip back the features so both the module width and cost can be shrunk dramatically.
Comprising an ‘Ambler’ style tilt EQ network similar to the ‘Stilts’ topology, Tilt allows simultaneous cut and boost of low and high frequencies using a single control.
Tilt control circuits are known for the transparency of their cut and boost curves, coupled with the inherent emphasis gained from cutting one end of the frequency spectrum whilst boosting at the opposite end.
It sounds pretty good on all audio source material but is especially suited to tracking drums, guitar and lead, or manipulating effects sends and returns.

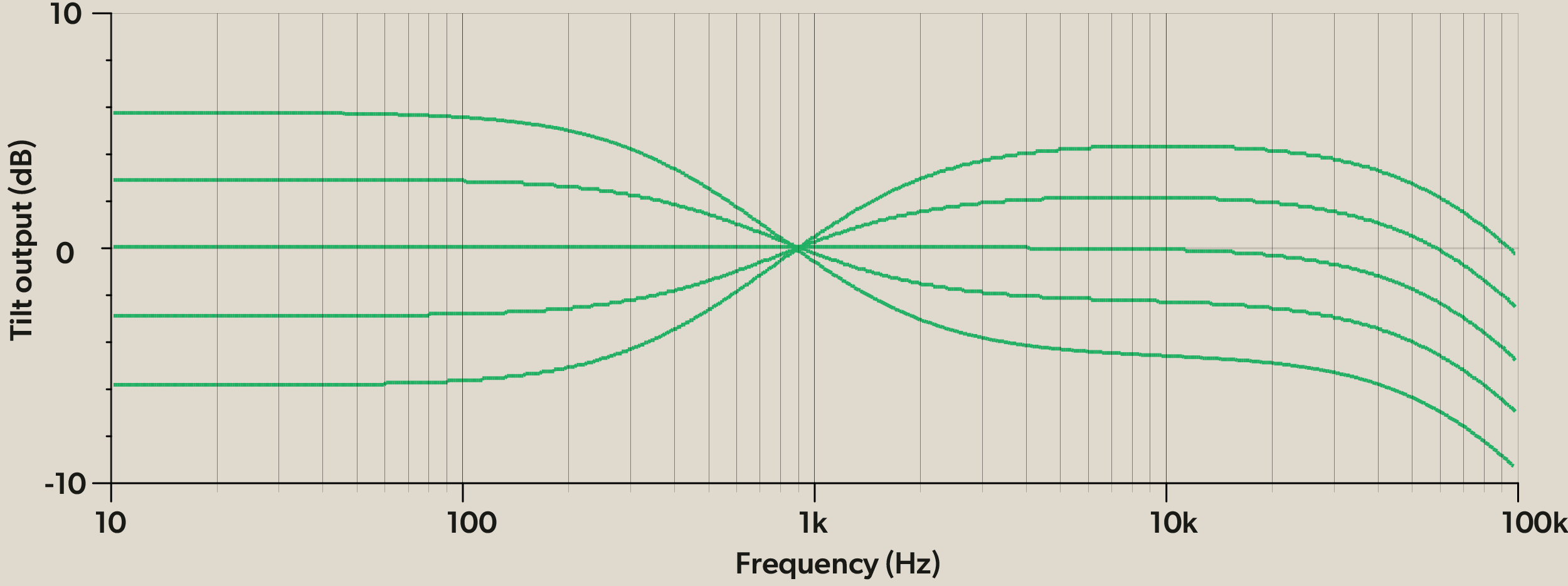

With the control knob at 12o’clock the sound passed is neutral. Turning the control knob clockwise will boost high and cut low frequencies pivoting from a fixed mid-range point. Turning the control anti-clockwise below 12 o clock will in turn boost low frequencies and cut the highs.
In addition to the EQ there is a soft clipping network which will begin to saturate signals over 15 volts peak to peak.
Tilt uses the same high quality OPA op amps, Alpha pots and ENIG PCBs as found in our main product line.
Features

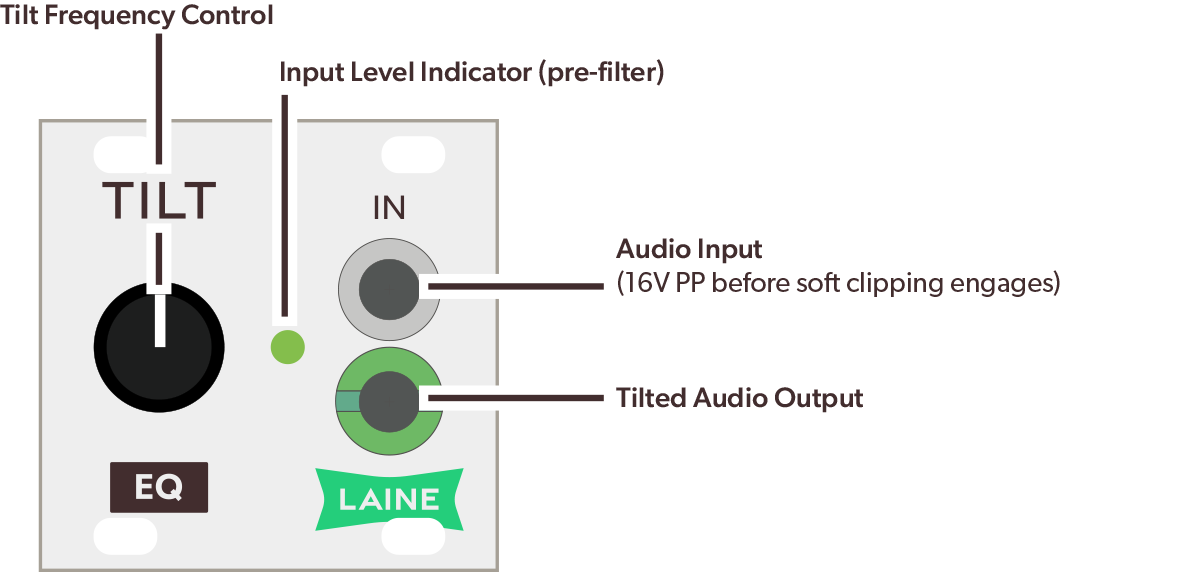

• Compact EQ tilt control in 1U
• Soft clipping network
• High-quality components used throughout
User Interface
Specifications and downloads
• Intellijel 1U format
• Width 8HP
• Depth 28mm
• Power requirements ~10mA +12V/~10mA -12V
• Impedance Input 100k / Output 1k
